Comprehensive technical specifications for our complete chain product range. Search, filter, and find the perfect chain for your application.

Showing 6 of 6 specifications

40SS-2

Active
Stainless Steel Short Pitch

Pitch

12.7 mm

Roller Ø

7.92 mm

Tensile

19.6 kN

Weight

1.3 kg/m

25SS-2

Active
Stainless Steel Short Pitch

Pitch

6.35 mm

Roller Ø

3.3 mm

Tensile

4.5 kN

Weight

0.41 kg/m

60SS-2

Active
Stainless Steel Short Pitch

Pitch

19.05 mm

Roller Ø

11.91 mm

Tensile

45.6 kN

Weight

3.07 kg/m

80SS-2

Active
Stainless Steel Short Pitch

Pitch

25.4 mm

Roller Ø

15.88 mm

Tensile

79.5 kN

Weight

5.51 kg/m

35SS-2

Active
Stainless Steel Short Pitch

Pitch

9.525 mm

Roller Ø

5.08 mm

Tensile

9.8 kN

Weight

0.68 kg/m

50SS-2

Active
Stainless Steel Short Pitch

Pitch

15.875 mm

Roller Ø

10.16 mm

Tensile

31 kN

Weight

2.04 kg/m

Technical Specification Sheets

Download our comprehensive technical datasheets for detailed specifications and dimensions

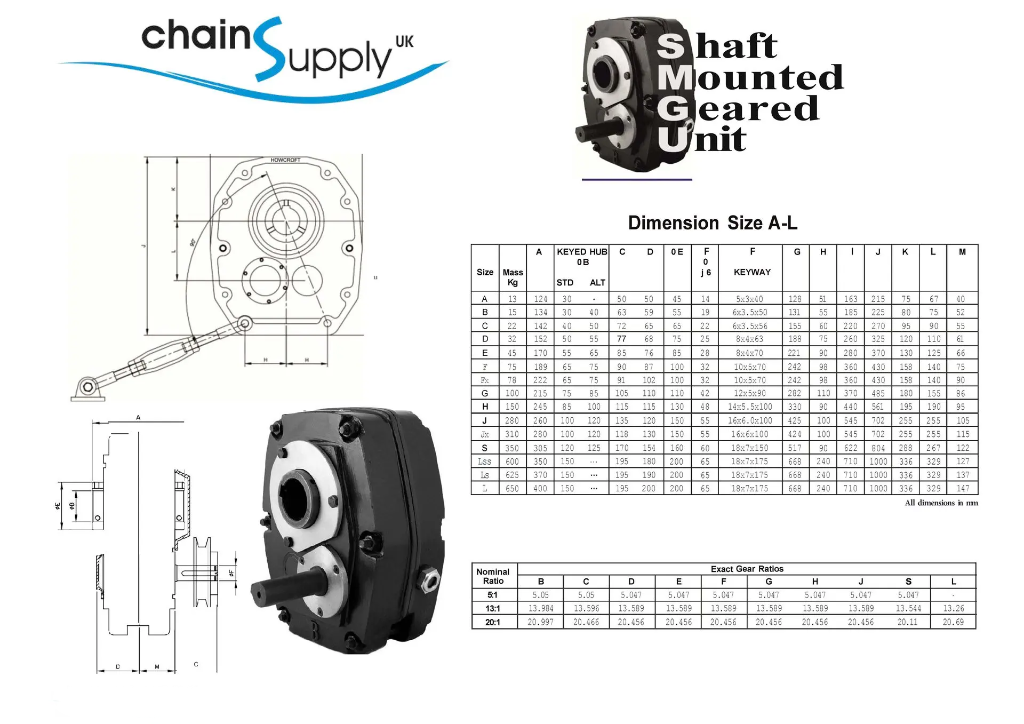

SMGU Dimension Spec Sheet

SMGU Dimension & Specifications

Shaft Mounted Geared Unit dimension sizing (A-L) and exact gear ratios

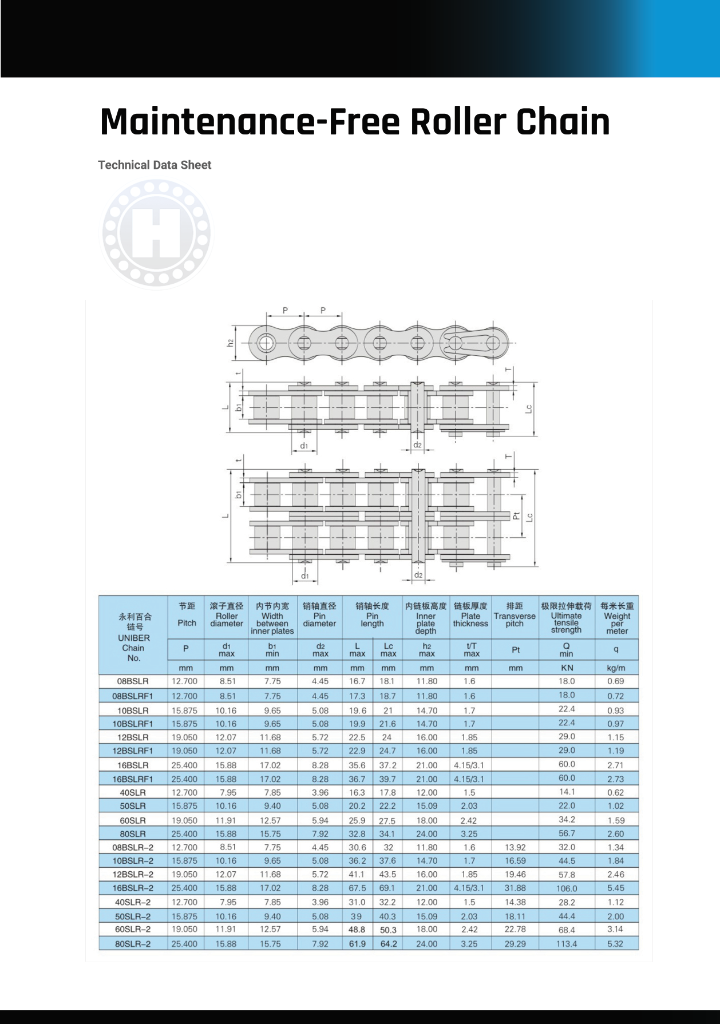

Maintenance-Free Roller Chain

Maintenance-Free Roller Chain

Technical data sheet with complete specifications and performance data

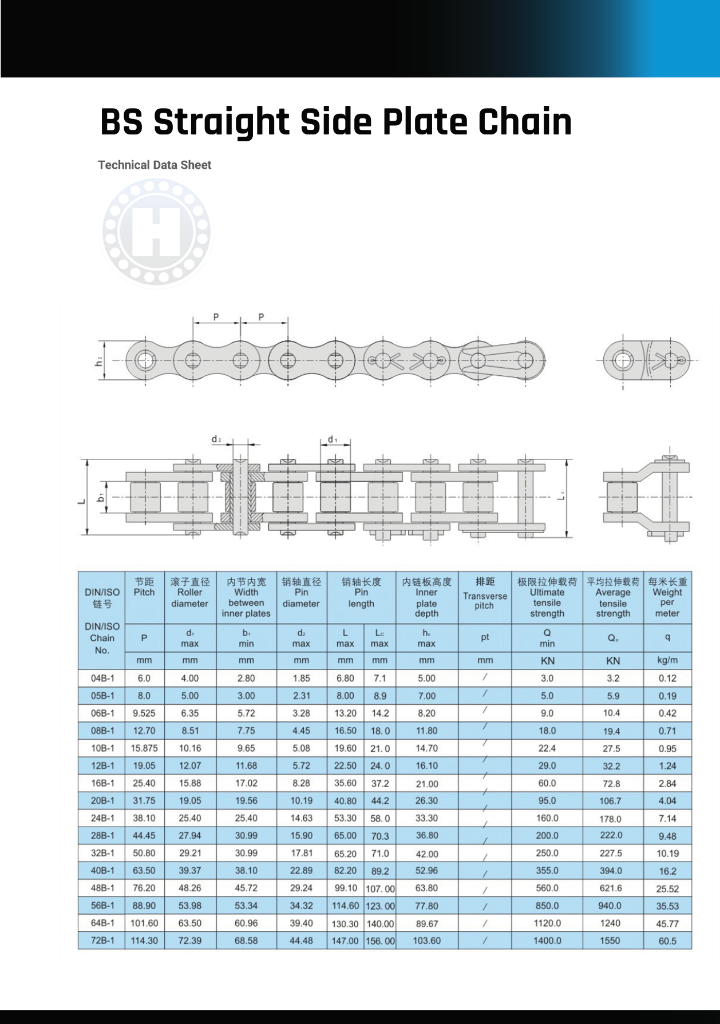

BS Straight Side Plate Chain

BS Straight Side Plate Chain

Technical specifications and dimension data for BS standard chains

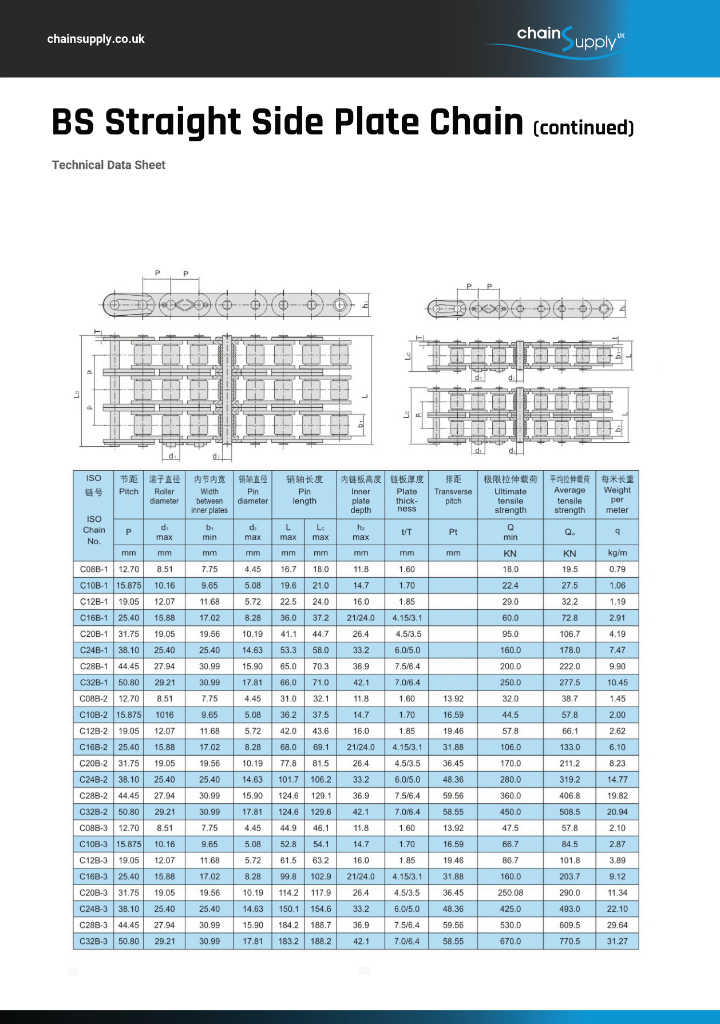

BS Straight Side Plate Chain (continued)

BS Straight Side Plate (Cont.)

Extended specifications and additional sizing information

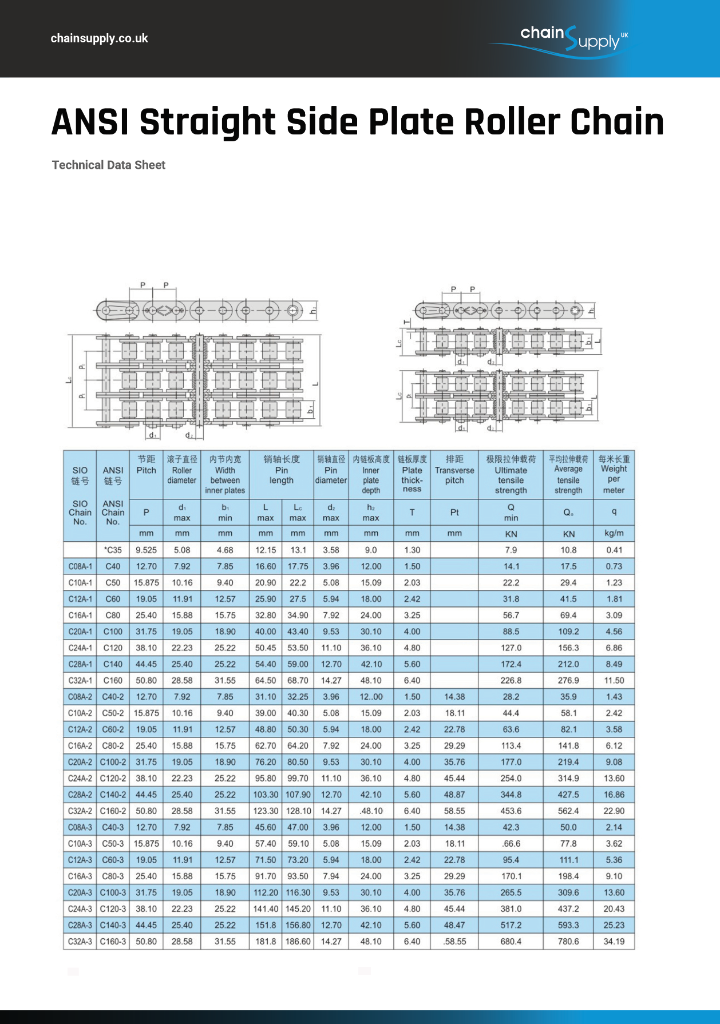

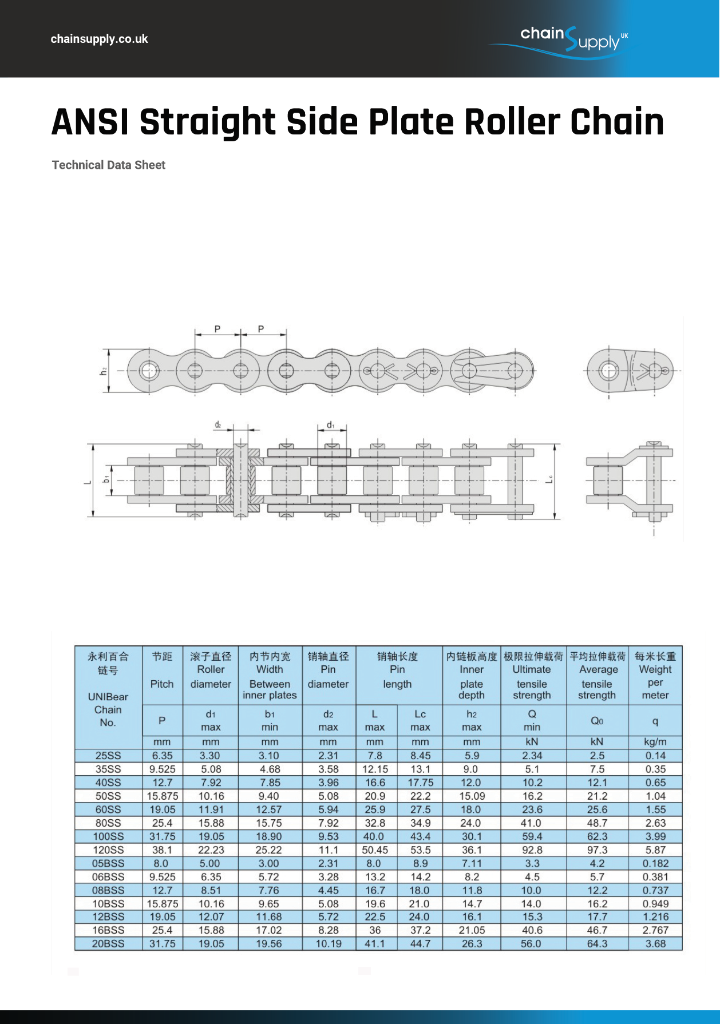

ANSI Straight Side Plate Roller Chain

ANSI Straight Side Plate

ANSI standard straight side plate roller chain specifications

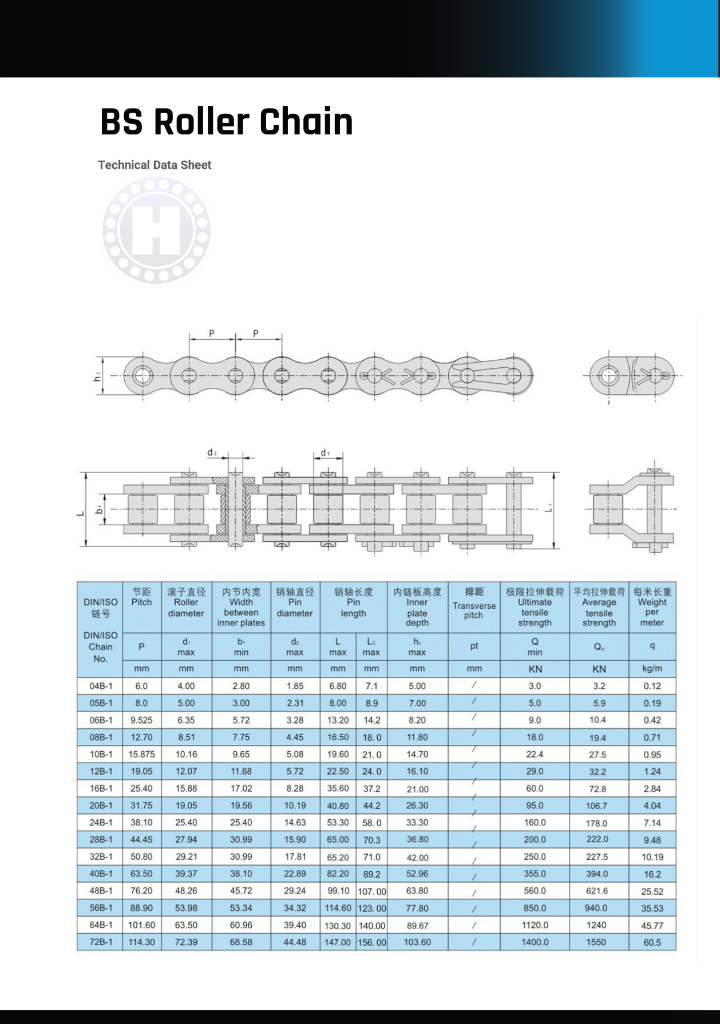

BS Roller Chain

BS Roller Chain

British Standard roller chain technical data sheets

ANSI Straight Side Plate (continued)

ANSI Straight Side (Cont.)

Extended ANSI straight side plate specifications

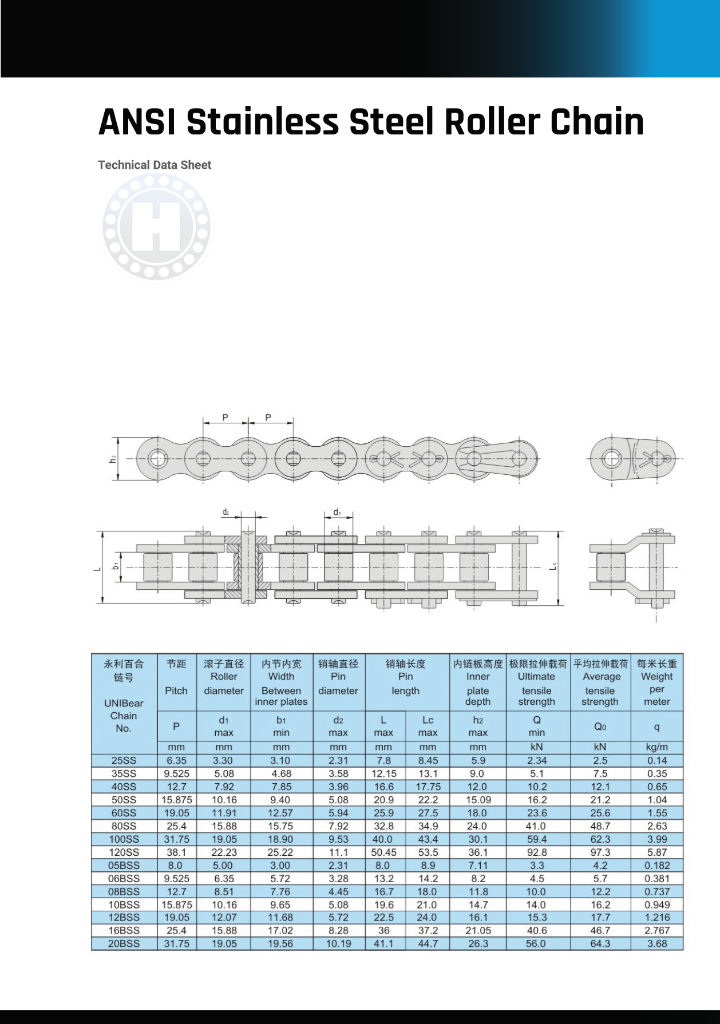

ANSI Stainless Steel Roller Chain

ANSI Stainless Steel Roller Chain

Stainless steel chain specifications for corrosive environments

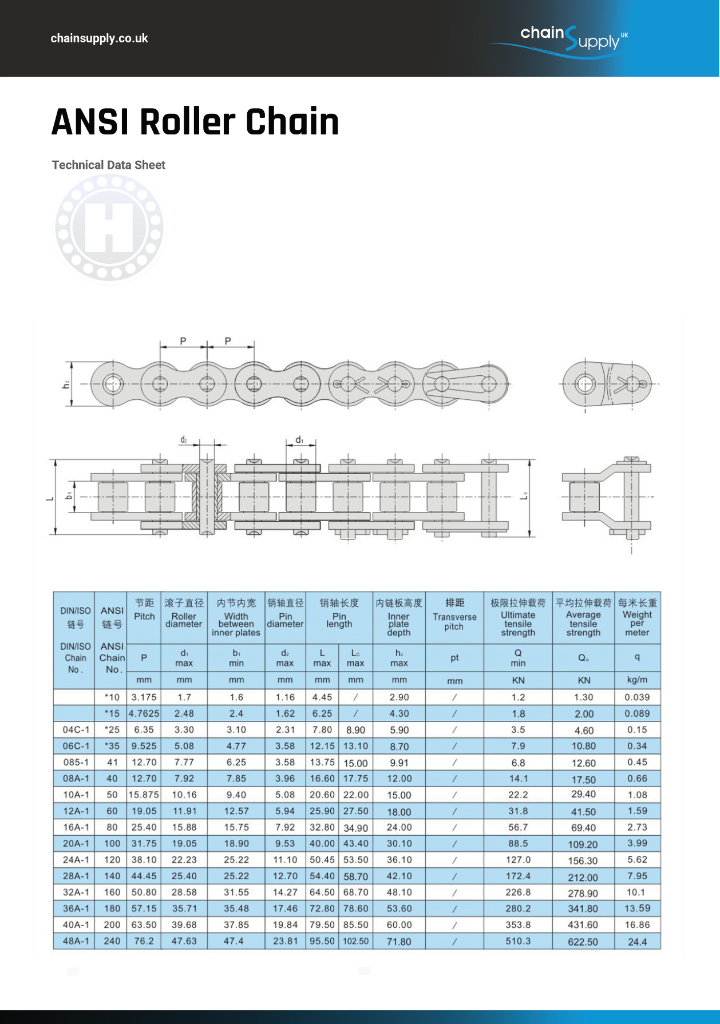

ANSI Roller Chain

ANSI Roller Chain

ANSI standard roller chain technical specifications

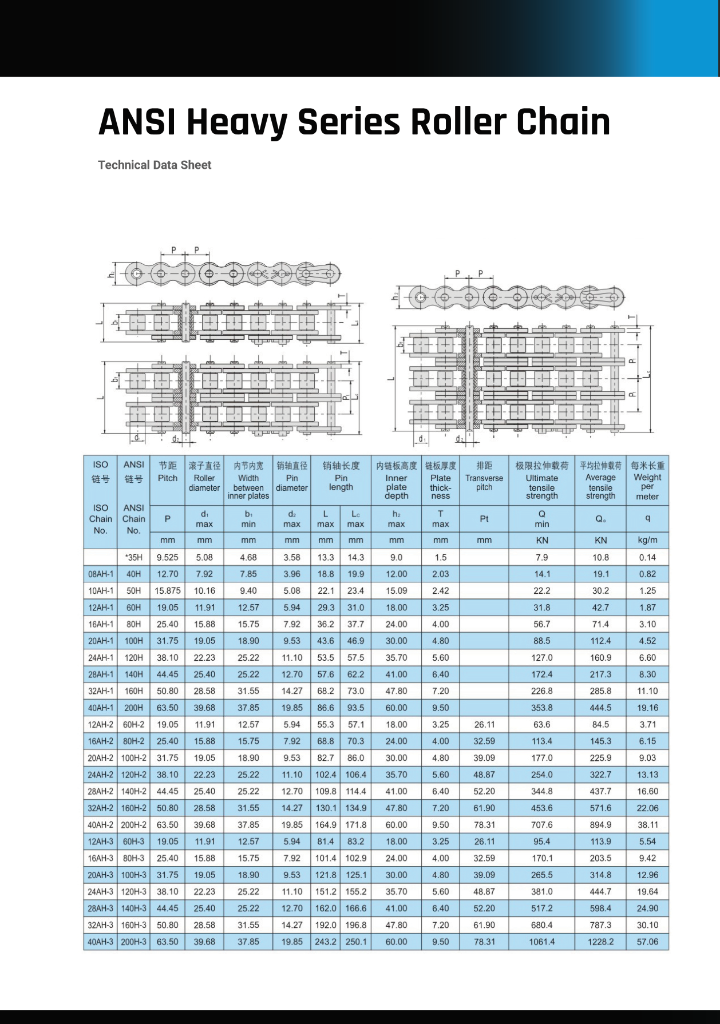

ANSI Heavy Series Roller Chain

ANSI Heavy Series Roller Chain

Heavy-duty ANSI roller chain specifications for demanding applications

Download Datasheets

Access detailed technical datasheets and material certifications for each chain specification.

Easy Filtering

Filter by chain type, material, and operating conditions to find the perfect match.

Cross-Reference

View related products and cross-reference with industry standards instantly.
